VPN Connect
 Previous  Next

The VPN Connect application is a user interface component that was designed to interact with the IPSEC Daemon. To open a VPN Connect application instance, please use the VPN Access manager application.

graphic

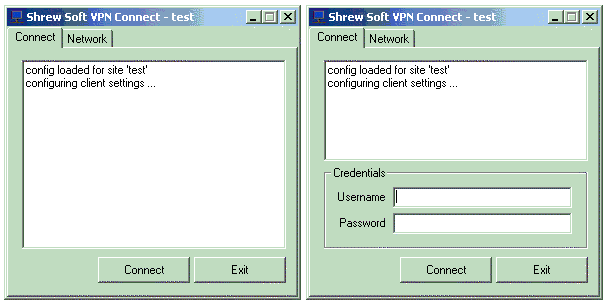

The Connect window may look different depending on
the style of authentication that has been configured for the site.

Connecting to a site

When the user presses the 'Conenct' button, the site configuration information is passed the the IPSEC Daemon along with a request to initiate communications. Messages regarding the connection state will be displayed in the status output window. If the connection succeeds, the 'Connect' button text will change to 'Disconnect'. Otherwise, an error message will be logged in the status window and the connection will be closed.

graphic

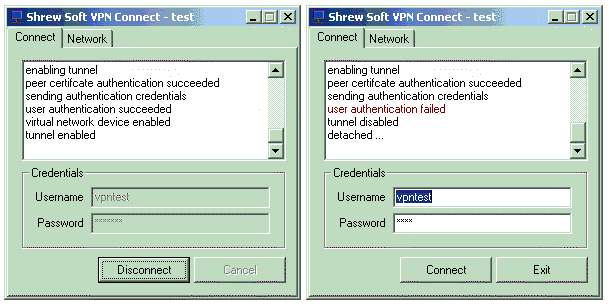

The Connect attempt succeeded for the window on the
left but failed for this window on the right.

Disconnecting from a site

When the user presses the disconnect button, a request to terminate communications message will be passed to the  IPSEC Daemon. This may take several seconds to complete as the IPSEC Daemon will make every attempt to terminate the communications gracefully and cleanup any resources it may have allocated before sending a final status message.

graphic

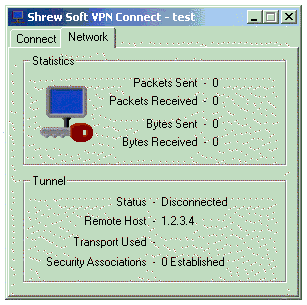

Network Statistics

By selecting the Network Tab, it is possible to view the current network statistics for the connection. This tab also details the current connection status, the network address for the remote peer, the negotiated network transport and the current number of established IPSEC Security Associations.
