Authentication Settings

The Authentication Settings Tab is used to define the configuration parameters required for the Client to handle Authentication when attempting to establish an ISAKMP SA with the remote Client Gateway.

To select an Authentication Method, choose an option from the Authentication method drop down selection window. The default value for this setting is Hybrid RSA + XAuth.

The behavior of an authentication option can be determined by interpreting the basic keywords that make up the option name. Here is a list of the keywords and their meaning.

When a Hybrid Authentication mode is used, it is not necessary to provide credentials for the client. Only the Client Gateway will be authenticated during phase 1 negotiations.

When a Mutual Authentication mode is used, it is necessary to provide credentials for both the client and the server. Both both parties will be authenticated during phase 1 negotiations.

When an RSA Authentication mode is used, the provided credentials will be in the form of PEM or PKCS12 certificate files or key files.

An Identity is used to determine that an IPSEC peer is authentic. In most cases, the value supplied must match what the peer also has configured. For the VPN Client, a Local Identity would be the ID value sent to the Gateway for verification. The Remote Identity is used to verify the ID value received from the Gateway. An Identity consists of a Type and Value.

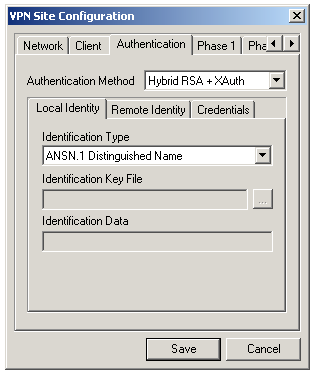

To select an Identification Type, choose an option from the Identification Type drop down selection window. Not all options are available for all authentication modes. Below is a list of available Identity Types.

When the ASN.1 Distinguished Name ( or ASN.1 DN ) option is selected, you must provide a DN in the form of a comma or forward slash delimited string. For Hybrid Authentication mode, the Local Identity type may not be ASN.1 DN. For a Mutual Authentication mode, the Local ASN.1 DN ID value can obtained automatically from the subject encoded in the PEM or PKCS12 certificate file. A Remote ASN.1 DN ID value can be verified by entering an exact DN value to match in the entry box. This verification step can be disabled by checking the box directly below the entry box. The ASN.1 DN ID type is not valid for any Pre Shared Key Authentication modes.

NOTE: It is highly recommended that an ASN.1 DN be used for any Mutual RSA authentication modes. It is also recommended that the Local ID value be obtained obtained automatically from the subject value of the certificate. The gateway is likely to reject any certificate that does not match the ID value offered by the peer during authentication.

When the Fully Qualified Domain Name or ( FQDN ) option is selected, you must provide a FQDN String in the form of a DNS domain string. For example, 'shrew.net' would be an acceptable value.

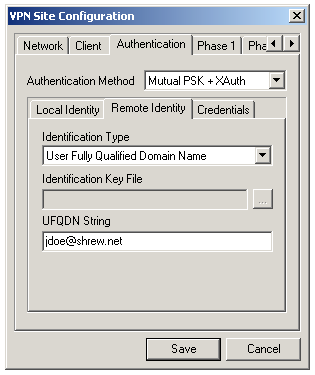

When the User Fully Qualified Domain Name or ( UFQDN ) option is selected, you must provide a UFQDN String in the form of a USER @ DNS domain string. For example, 'jdoe@shrew.net' would be an acceptable value.

When the IP Address option is selected, the value is determined automatically by default. If you would like to use an address other than the adapter address used to communicate with the Client Gateway, simply uncheck the option and specify the Address String.

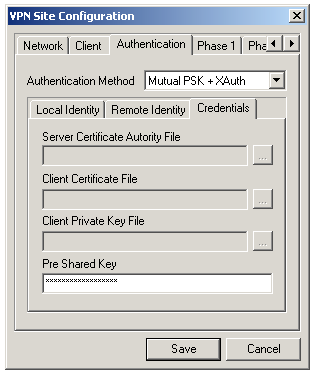

There are four settings used to specify credentials for a Site Configuration. When using certificate or key files for authentication, they would optimally be located in the certificates directory which is created directly under the root VPN Client Installation directory.

This value is a path to a PEM or PKCS12 file that contains the Certificate Authority certificate and public key that was used to generate the Client Gateways certificate. This value is required when an RSA Authentication mode is selected.

This value is a path to a PEM or PKCS12 file that contains the certificate and public key that the client will be used during phase 1 authentication. This value is required when a Mutual RSA Authentication mode is selected.

This value is a path to a PEM or PKCS12 file that contains the private key that the client will be used during phase 1 authentication. This value is required when a Mutual RSA Authentication mode is selected.

This value is a string that represents the Pre Shared Key that will be used during phase 1 authentication. A Pre Shared Key value must be 8 characters or more in length. This value is required when a Mutual PSK Authentication mode is selected.
