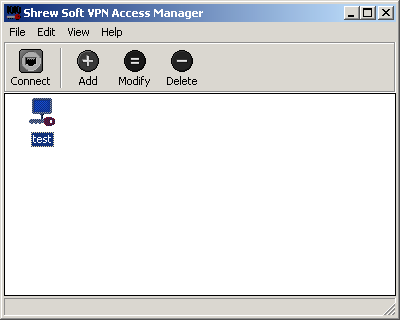

This image shows the VPN Access manager with a
single VPN site configuration defined.
Connecting to a Site
To initiate a connection, highlight the site you wish to connect to and click the Connect toolbar button or select Connect from the window File Menu. You may
alternately right click on the site you wish to connect to and select Connect from
the popup context menu. Double clicking on the site icon will also perform the
same action.
Creating a Site Configuration
To create a new site configuration, click the Add toolbar button or select Add
from the window Edit Menu. You may alternately right click inside the site list
window and select Add from the popup context menu. When the Site
Configuration dialog appears, enter all the required settings for your new site.
After you have finished, a new icon will be added to the site configuration list.
Modifying a Site Configuration
To modify an existing new site configuration, highlight the site you wish to modify
and click the Modify toolbar button or select Modify from the window Edit Menu.
You may alternately right click on the site you wish to modify and select Properties from the popup context menu. When the Site Configuration dialog
appears, modify all the required settings for the existing site.
Deleting a Site Configuration
To delete an existing site configuration, highlight the site you wish to delete and
click the Delete toolbar button or select Delete from the window Edit Menu. You
may alternately right click on the site you wish to delete and select Delete from
the popup context menu. Confirmation is required before a site is permanently
deleted.
Exporting a site Configuration
To export an existing site configuration to a file, highlight the site you wish to
export and select the Export option from the File Menu. You will be prompted to
select a location and file name for the exported configuration.
Importing a site Configuration
To import an existing site configuration from a file, select the Import option from
the File Menu. You will be prompted for the path and file name of the
configuration to be imported.
