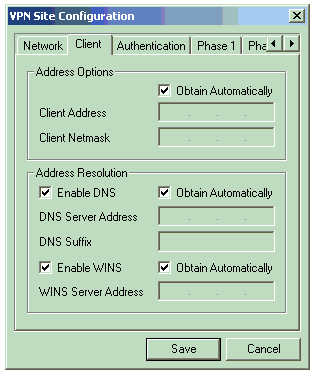

The Network Settings Tab is used to define which configuration options are
manually configured and which options can obtained automatically from the
remote Client Gateway.
Address Options
When a remote gateway is configured to support the Configuration Transaction
Exchange, it should be able to assign a valid client address and netmask
automatically. If not, uncheck the Obtain Automatically option and enter a valid Client Address and Client Netwmask for this site configuration.
Address Resolution
When a remote gateway is configured to support the Configuration Transaction
Exchange, it should be able to provide valid client DNS and WINS settings
automatically. If not, uncheck the corresponding Obtain Automatically option for
the DNS or WINS options and and enter valid DNS Server Address, DNS Suffix
or WINS Server Address values for this site configuration. If specific DNS or
WINS settings are not required for this site configuration, simply uncheck the Enable DNS or Enable WINS option.
Please be aware that if the Enable DNS or Enable WINS options are used, a
security policy may be required to communicate with these servers.
